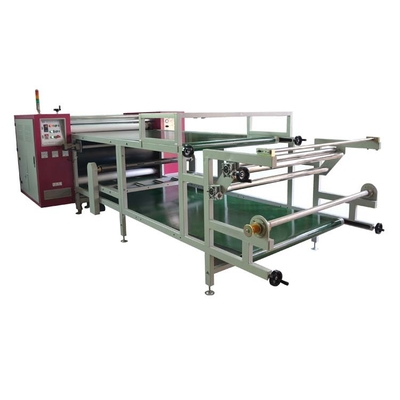

Name: Fabric Printing Oil Heated Industrial Garment Digital Printing Sportswear Roller Calender Heat Press Sublimation Machine
Brand: Fabric Printing Oil Heated Industrial Garment Digital Printing Sportswear Roller Calender Heat Press Sublimation Machine
SKU: GS-R190
Price: 1 USD
Availability: InStock
Rating: 5 (111 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Type: Heat Press Machine

Applicable Industries: Garment Shops, Printing Shops, Advertising Company

Condition: New

Plate Type: Flatbed Printer

Model Number: GS-R190

Usage: Label Printer, Cloths Printer

Automatic Grade: Automatic

Color & Page: Multicolor

Voltage: 220V/380V/110V

Dimensions(L*W*H): 288*143*160cm

Weight: 1500kg

Warranty: 1 Year

After-sales Service Provided: No after-sales service, Free spare parts, Field maintenance and repair service, Video technical support

Zertifizierung: CE,ISO9001:2016

Product name: oil heating printing heat sublimation calander

Machine Type: High speed roll to roll textile heat transfer

Application: Fabric printing,mouse pad,tote bag, bedsheet

Temperature Range: 0-399degree

Time range: 0-999s

Printing area: 120cm/150cm/170cm/190cm

Machine surface: pink+grey color/green grey color

MOQ: 1 Unit

Warrranty: 1 year

Service: One Year Guarantee

Grundinformation

Zertifizierung: CE,ISO9001:2016

Model Number: GS-R190

Zahlung und Versand AGB

Packaging Details: Wooden case or export carton with foam

Supply Ability: 100 Set/Sets per Month

Produkt-Beschreibung

Industrial Garment Digital Printing Sportswear Roller Calender Heat Press Sublimation Machine

Product Description

The new oil heated rotary heat press has been specifically designed to meet the increasing demand for cut part digital printing. This method is widely used to print sport and team apparel. The new oil heating system guarantees a uniform heat distribution across the width of the drum with a minimum of energy consumption. This system uses 50% less energy than electrically heated presses. The 320mm diameter drum is suitable in production speed for digital printing. It has 3 different options of operation: The transfer paper is placed design side up on the table and feeds continuously into the machine. The pre-cut parts are placed on the design and registered with maximum ease. The spent print paper and the printed parts exit via a variable speed conveyor. The transfer paper is fed continuously into the machine and cut fabric parts are placed on to the design areas. In this case the used transfer paper is re-rolled continuously under the feed table and the printed parts are released on to the variable speed exit conveyor. Continuous printing roll-to-roll on both print paper and fabric. The top feeding hot oil calendar system will eliminate seconds caused from fabric shrinking or paper movement and increase production, saving money and energy costs. High production, quality printing and our service after the sale give you the best of reasons to invest for all of your needs in digital sublimation printing.

Technical features

• Oil-heated drum. Self-contained with digital heat control

• Digital variable speed control

* Automatic belt tracking

• 3 unwind stations with adjustable tension

* 2 rewind stations with separately controlled speed and tension

• Self-locking safety chucks for all unwind bars

• 300mm diameter heated drum

• “S” wrap bars for fabric tensioning

• Hand safety protection at entrance

* Lanyard controlled reversing system for safety & ease of feeding

* Dual Safety Reversing Systems

* Low maintenance, brushless drive motor

* All electronic controls. No air required

* Automatic cool down at shut down

Parameter:

Name	Model No.	Roller dia.(mm)	Wdith entrance(mm)	Voltage(V)	Power	Temp.(℃)	Speed/hour(cm/h)	Size(cm)	Weight(kg)
Roller heat transfer machine	GS-R120	420	1200	110/220/ 380	18kw	1-400	120-180cm/h	380x180x140	900
			1700		21kw		120-180cm/h	380x240x140	1300
			2000		24kw		120-180cm/h	380x270x140	1600
			2200		27kw		120-180cm/h	380x290x140	1700
			2500		30kw		120-180cm/h	380x320x140	1900
		600	1200		30kw		200-300cm/h	380x190x150	1500
			1700		36kw		200-300cm/h	380x240x150	1900
			2000		39kw		200-300cm/h	380x270x150	2200
			2200		42kw		200-300cm/h	380x290x150	2500
			2500		45kw		200-300cm/h	380x320x150	2800
